Extra performance and energy efficient

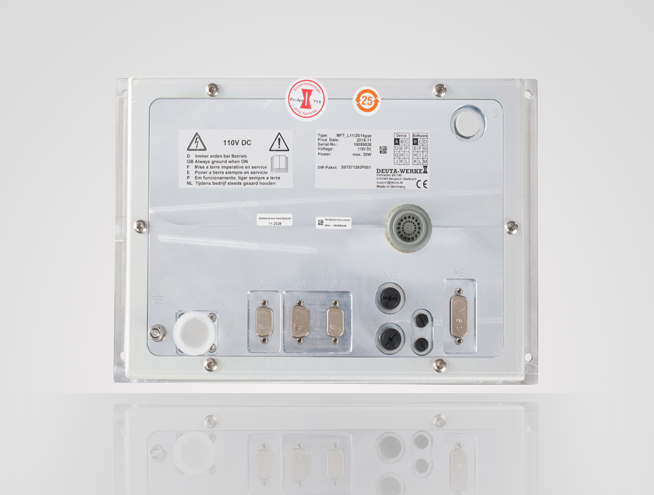

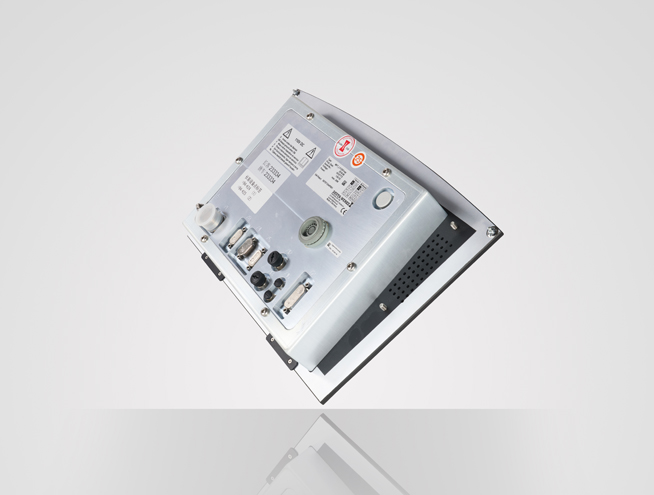

The high performance of the MFT L11 Multi-Functional Terminal is based on the DEUTA Geode single-board design concept. For this, DEUTA’s unique board technology was combined with the successful DEUTA terminal design. The result is a superior vehicle display in a class of its own: large working storage, high computing power, and less power loss due to energy-saving technology.
If you want to know more information, please click here.
Feature/Specification: MFT11/2
Display lighting: LED backlight
Dimmable lighting: 0 to 350 cd/m2
Status LEDs: 3 LEDs
CPU/clock frequency: Geode, LX 800, 500 MHz
RAM memory: 256 MB (incl. video memory)
Flash-EPROM: 1 MB
Video memory: 4 MB
Flash memory: min. 2 GB
Extensibility: upon request
PC keyboard: connection USB keyboard
Additional controller: Environment Controller
Buzzer: yes
Temperature management: yes
Ambient light sensor: front side
Power supply: 24, 48 or 74 - 110 V (DC +– 30%)
Power consumption: typ. 25 W
Display type/size: Colour TFT/6.5" (16.5 cm)
Colour TFT/8.4" (21.34 cm)
Colour TFT/10.4" (26.4 cm)
Colour TFT/12.1" (30.7 cm)
Wide angle display: optional
Display resolution, colour intensity: 640 x 480 18 bit, 800 x 600 18 bit, 1024 x 768 bit
Ethernet: 2x 10/100 BaseT as (M12 d-coded1))
Video in: up to 4 cameras
Audio out: 2x Line Out or 2x2 W loudspeakers
Sound amplifier: optional
Serial interfaces: 1x RS 485/RS422, RS232 (CAN variant)
USB: 2x USB 2.0 (M8 a-coded1)) + 1x Feature Connector
Vehicle bus, I/O: Ethernet, MVB on board (ESD or EMD), CAN, Profibus, RS 422, RS 485, RS 232, dig. inputs/outputs
Device address: 3 bit
Keypad device front: Short-stroke membrane keypad
Keypad backlight: yes, LED dimmable
Touch screen: yes, resistive, scratch-proof
Front dimension (W x H): 310 mm x 214 mm
Mounting dimension (W x H x D): 280 mm x 204 mm x 47 mm
Weight: approx. 3.6 kg
Protection class front/rear: IP 65 / IP 54
Temperature range operation: -25°C to +70° (full functionality)
Temperature range storage: -35°C to +85°C
MTBF value: approx. 100,000 hrs
Operating system: OS LINUX, QNXTM, WindowsTM
Applications: ETCS, diagnostics, brake control, etc.
